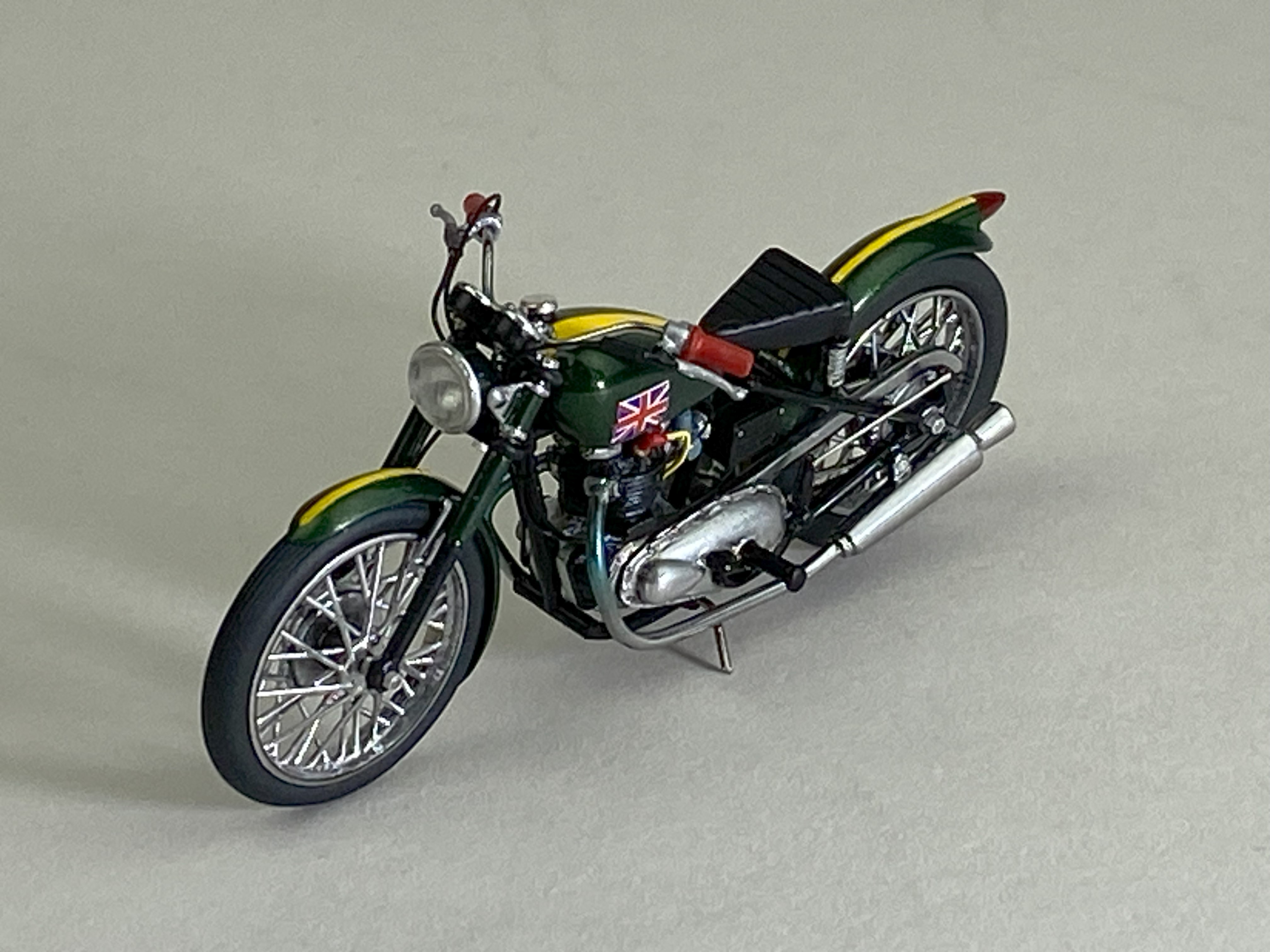

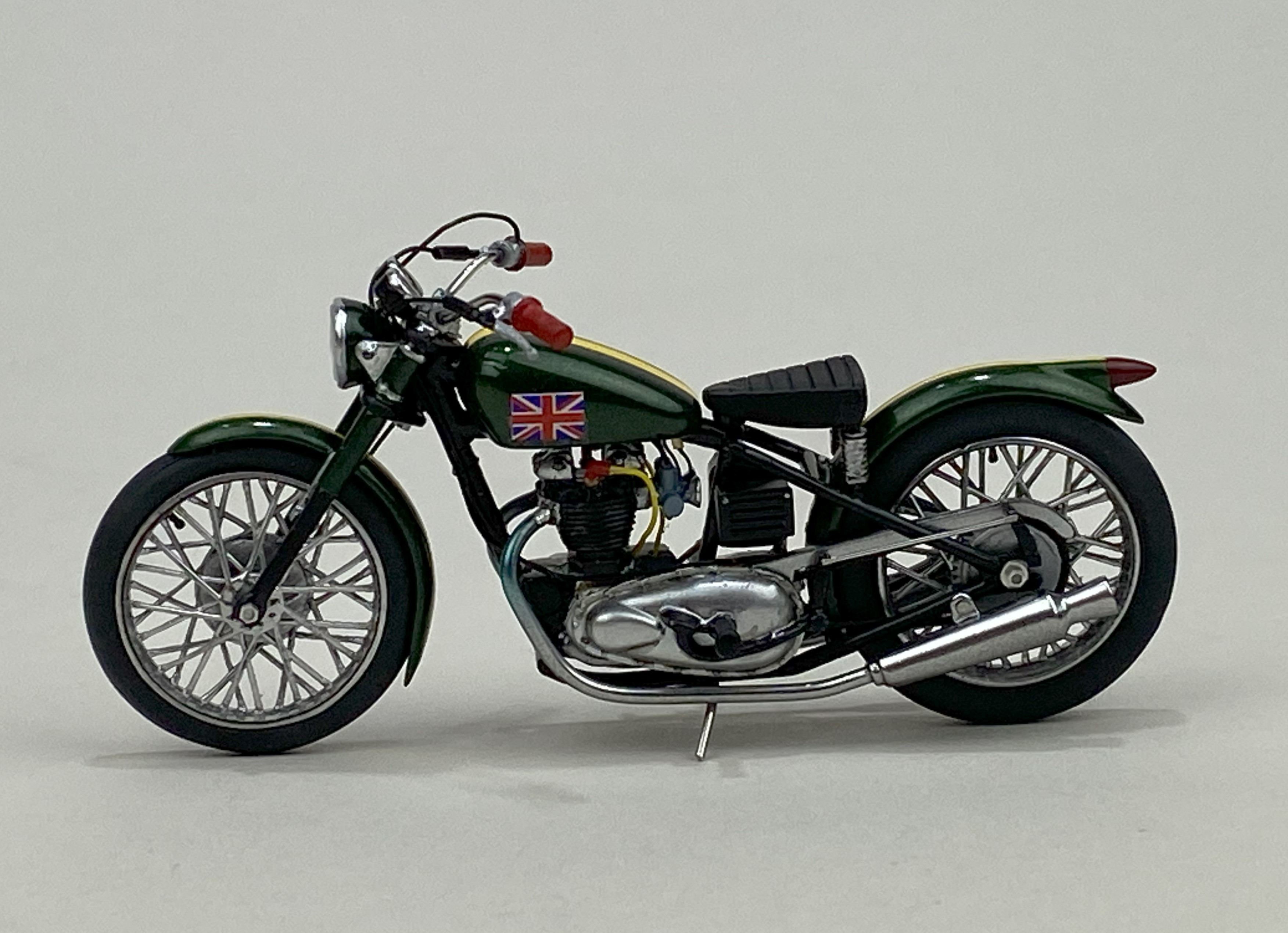

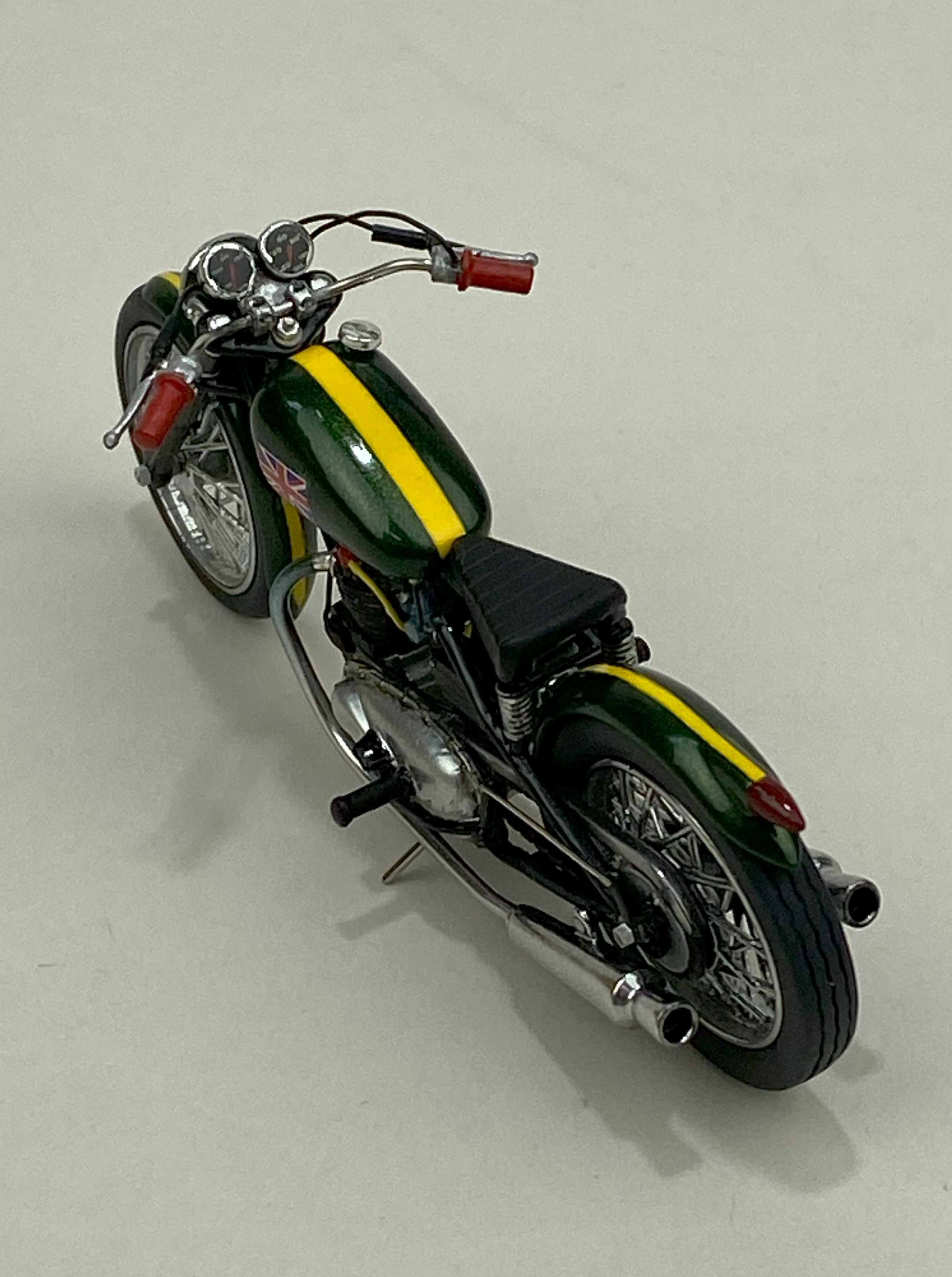

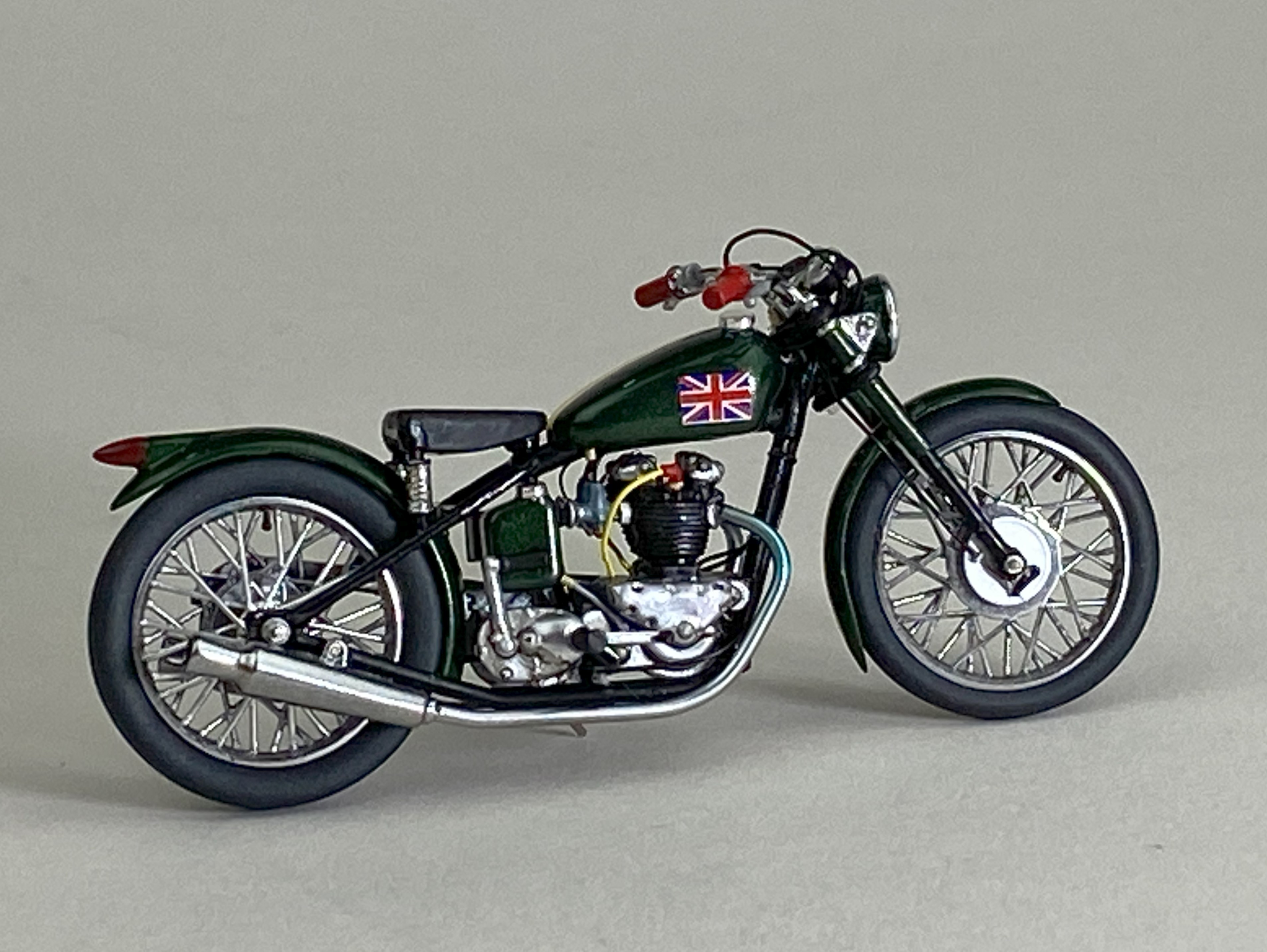

Triumph Show Bike
Complete Kit in 1:25 Scale
$45.00$35.00
The Triumph Show Bike is a combination of resin castings and 3D prints to build a classic 50's era Triumph twin "bobber". You get the engine, frame, fenders, seat, tank, wheels, tires, mufflers, and forks and other accessories. The builder supplies 0.031", 0.051, 0.062" wire or rod for pinning some parts and to create the axles and steering stem. Complete assembly instructions with helpful Exploded View is included. 3D printed parts are supplied on the supports, so some experience with 3D printed part prep is recommended.
3D Printed Parts
1 Tire, Front
2 Wheel, Front
3 Tire, Rear
4 Wheel, Rear
5 Gauge Clamp Assy
6 Handgrip Set
7 Fender, Front
8 Brake, Front
9 Forks
10 Headlight
12 Frame
13 Muffler Set
14 Carburetor Set
15 Battery Box
16 Oil Tank
19 Fender, Rear
20 Chain & Sprocket Assy
21 Shift Lever
22 Footpeg, RH
23 Seat
24 Tank
Resin Castings
11 Engine
17 Primary Cover
18 Transmission
Builder Supplied Parts
A Handlebars-0.031" (20 AWG, 1/32")wire
Axles, front and rear-0.031" (20 AWG, 1/32")wire
Steering Stem-0.031” (20 AWG, 1/32")wire
B Exhaust Pipes-0.051" (16 AWG) wire
Assembly pins, primary cover to engine and trans-0.031" (20 AWG, 1/32")wire
Assembly pins, primary cover to engine-0.062" (1/16") rod or wire
C Headlight Lens
Paint
Decals
Adhesives
